METAL FURRING MACHINE





We design this machine with 10 roller stations.
With simple in operation and low consumtion of source, this machine can produce the product about 15 - 18 meters per minute.

We manufacture this machine by hight quality material,
Small dimension at width, high and lenght makes it so simple for manufacturer to put this machine at their factory.

the output product of this machine can applicate to interior working, like for ceiling frame,
this machine just produce one profile.

the following specification data for your reference:

Dimension : W 700X H 850 X L 2200
number of stage : 10
line speed : 15 - 18 M/minute

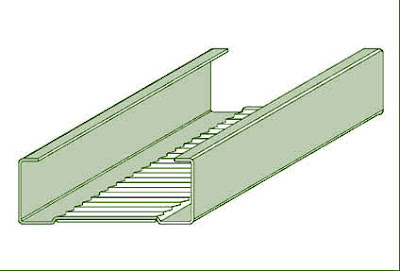

profile : CNP
motor drive : 3 HP / 3 phase
cut off : hydroulic shear after forming with adjustable to lenght limit
switch
hydroulic motor : 3 HP / 3 Phase
system operation : Manual and mechanical automatic
Uncoiler : single sided max 750 Kgs
run out table : 6000 mm fabricated steel frame work
raw material : galvalum or galvanized metal sheet
thickness : 0,3 - 0,5 mm

we also can do a custom roll forming machine, just according to your profile drawing specification.

and we gives you one year fully guarantee for all tears and damages in normal operation condition.
and for electrical parts and system, we gives you one month guaranty,
